NVR IP

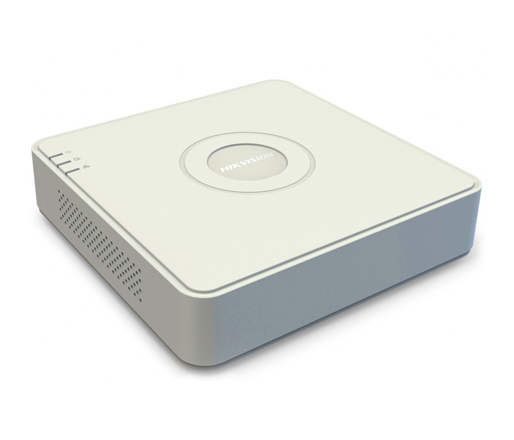

DS-7104NI-E1

Embedded Mini Plug & Play NVR

Descripción
  • Third-party network cameras supported
  • Up to 2 Megapixels resolution recording
  • HDMI and VGA output at up to 1920×1080P resolution
  • HDD quota and group management
  • 4/8 independent PoE network interfaces are provide
Especificaciones
Video/Audio Input
Two-way audio input:1-ch, RCA (2.0 Vp-p, 1kΩ)
IP video input:4-ch
Network
Remote connection:128
Incoming bandwidth:25Mbps
Outgoing bandwidth:40Mbps
Video/Audio Output
HDMI/VGA output:1-ch, resolution:
1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
Audio Output:1-ch, RCA (Linear, 1kΩ)
Decoding
Capability:[email protected], [email protected]
Live view / Playback:1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF
Hard Disk
SATA:1 SATA interface for 1 HDD
Capacity:Up to 4TB for each disk
External Interface
Network Interface:1 RJ-45 10 / 100 Mbps selfadaptive
Ethernet interface
USB Interface:2, USB2.0
POE
Supported Standard:AF
Interface:4 independent 10 /100 Mbps PoE
Ethernet interfaces
Max. Power:35W
General
Power Supply:48V DC
Consumption(without hard disk and POE):≤ 6 W
Working Temperature:-10 oC ~ +55 oC (+14 oF~ + 131 oF)
Working Humidity:10 % ~ 90 %
Chassis:1U chassis
Dimensions:255 × 205 × 45 mm
Weight(without HDD):≤ 1 Kg
